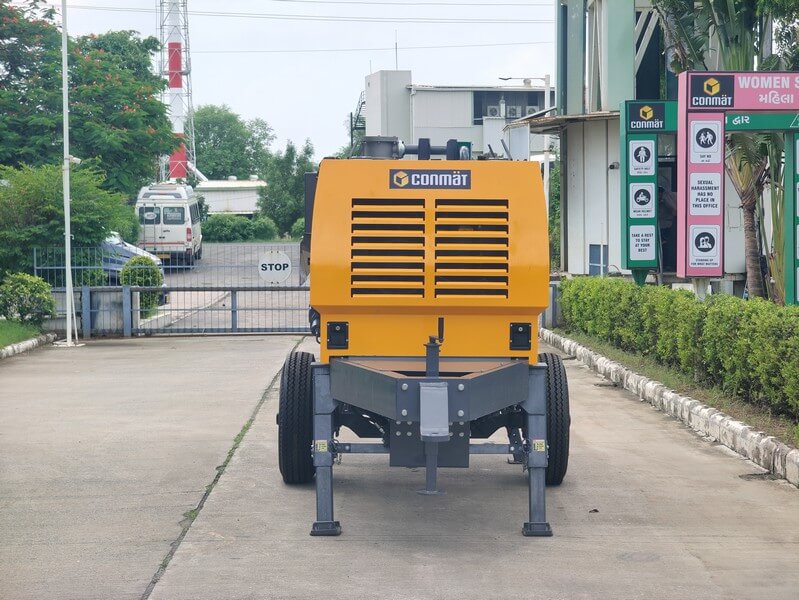

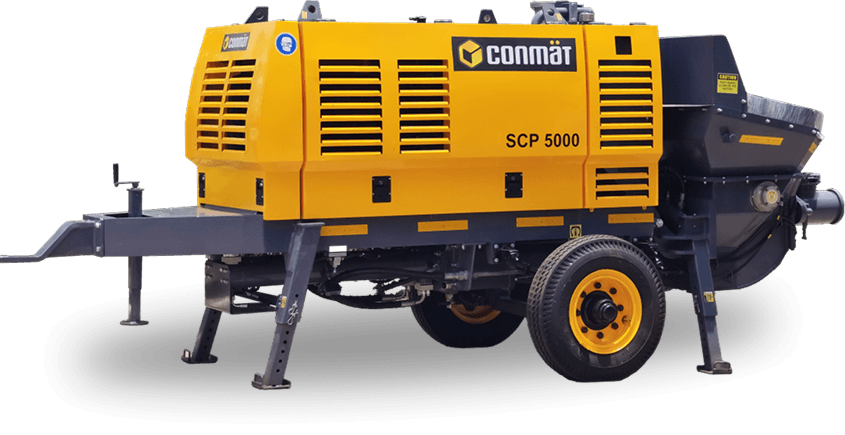

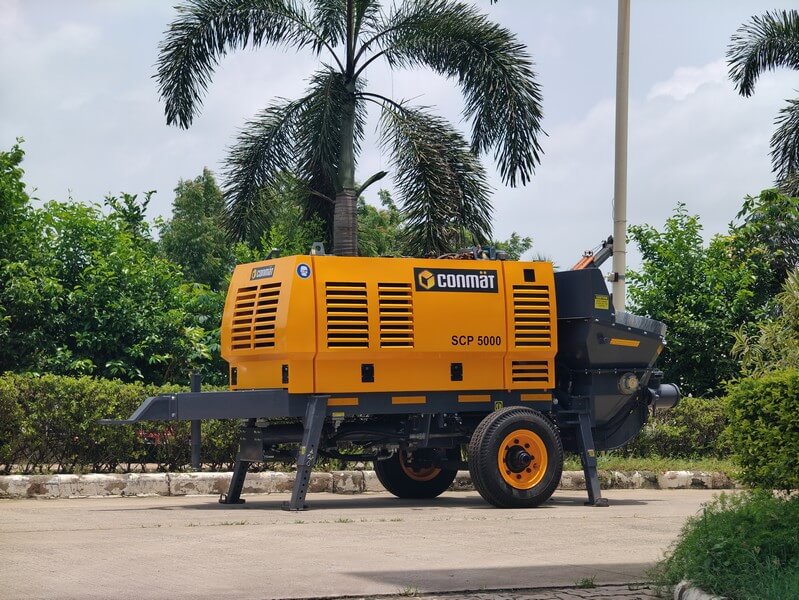

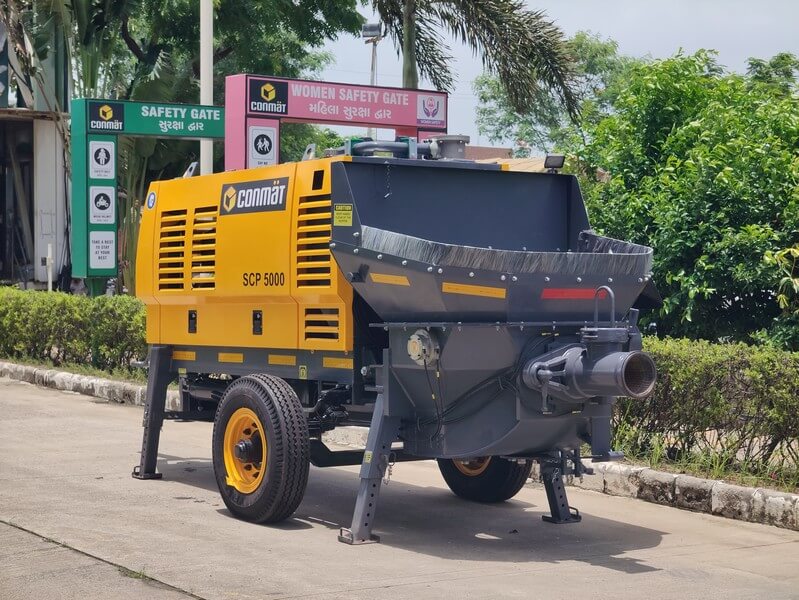

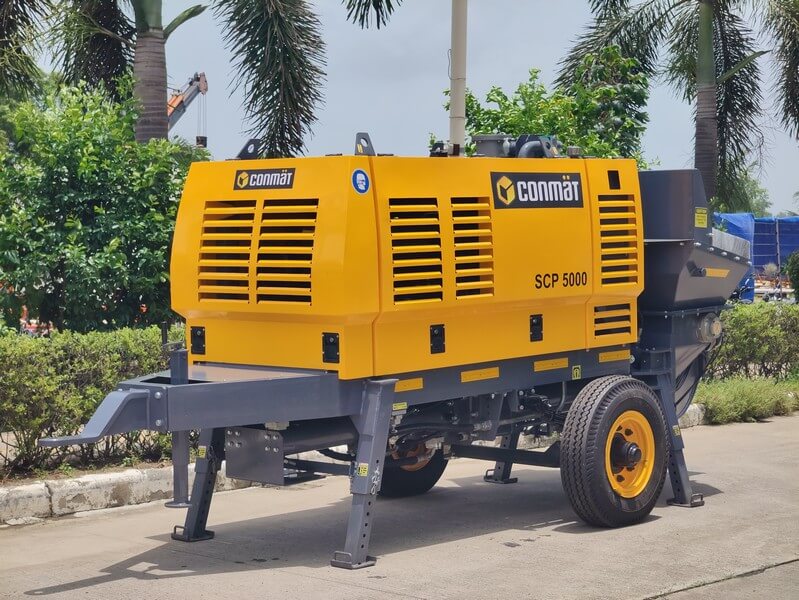

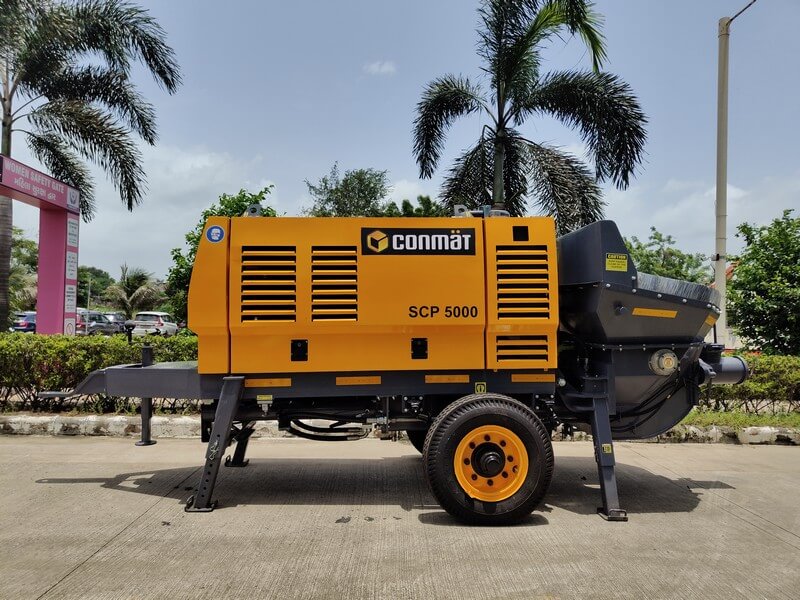

Stationary Concrete Pump

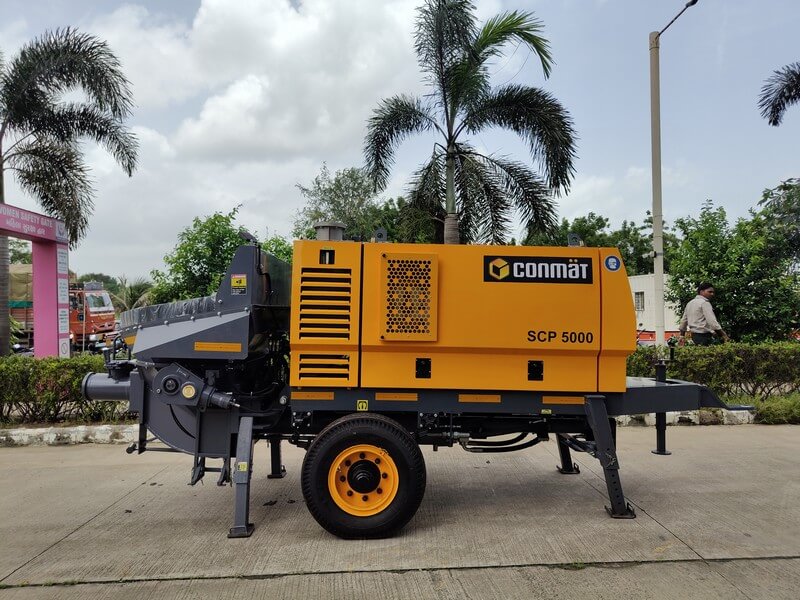

SCP 5000
SCP 5000
A reliable mid-capacity stationary concrete pump, built for infrastructure and commercial projects needing dependable, steady-output placement without the scale of a large infra pour.
Concrete Output Max- 49 m3/hr
Drive Unit Power - 49 kw
| Tech Specifications | Details |
|---|---|
| Concrete Output (Max. Theoretical) (m³/hr) | 49 |
| Concrete Pressure (Max. Theoretical) (bar) | 57 / 85* |
| Delivery Cylinder Dia. / Stroke Length (mm) | 200 / 1000 |
| Strokes/min (Max. Theoretical) | 26 / 17* |
| Control System | Manual / HMI** |
| Tech Specifications | Details |
|---|---|
| Drive Unit Power (kW) | 49 |
| Engine Make | Kirloskar |
| Hopper Capacity (Ltr) | 625 |
| Transfer Tube | S-TUBE |
| Weight (kg approx.) | 3,800 |
| Dimension Code | Dimension in mm |
|---|---|
| A | 485 |
| B | 4865 |
| C | 5350 |
| D | 1250 |
| E | 675 |
| F | 1790 |
| G | 1570 |
| H | 2150 |
Features
Proven S-Valve Technology
Proven S-valve technology delivers reliable, high-pressure pumping performance, built to handle the toughest Indian ambient site conditions.
Specially Designed Hopper
A specially designed hopper facilitates free-flowing concrete for better suction, keeping the pumping cycle smooth and consistent.
Remote Control
Operate the pump from a safe distance with remote control, giving the operator full command over placement without staying at the control panel.
Modular Design of Hydraulic & Diesel Tank
Hydraulic and diesel tanks are modularly designed for easier access and maintenance, reducing service time on-site.
Safety Grill Open Alarming System
An alarm alerts the operator if the safety grill is left open, preventing unsafe operation and protecting personnel on-site.
Shaft Mounted Gear Box
A shaft-mounted gear box eliminates the need for alignment, simplifying maintenance and reducing wear over the pump's operating life.
Applications
Large Infrastructure Projects
Delivers sustained, high-volume placement for metro, dam, and major highway works.
Urban Infrastructure & High-Rise
Pushes concrete higher without a mixer truck idling on-site, cutting placement time on tall pours.
EPC Contractors
Fits into a single-vendor equipment fleet for EPC contractors managing multiple concurrent sites.
Government & Public Infrastructure
Backed by Conmat's ISO 9001/27001/45001 certifications, suited to compliance-driven government and PSU projects.
