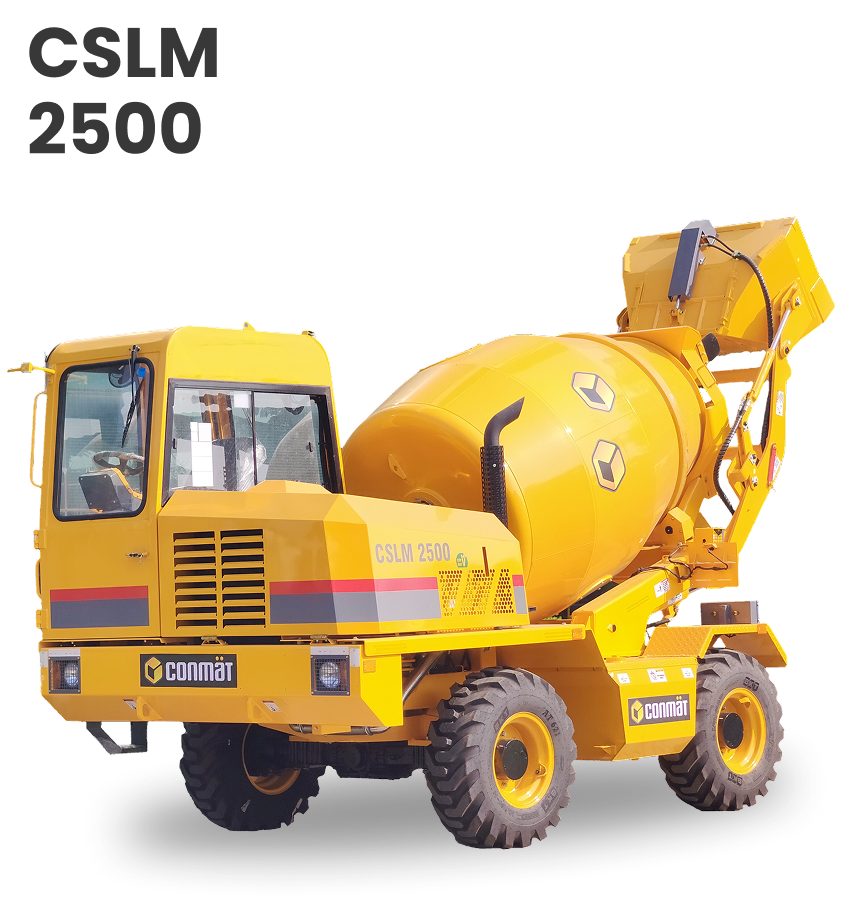

Self Loading Concrete Mixer
CSLM 2500
CSLM 2500
A high-performance, all-in-one self-loading mixer that combines efficiency with agility, ensuring smooth and precise concrete mixing on demanding sites.
49 HP BS-V Diesel Engine
Drum output - 2.5 m3
| Tech Specifications | Details |
|---|---|
| Drum Output per batch (m³) | 2.5 |
| Drum Rotation (RPM) | 0-22 |
| Bucket Capacity (Ltr) | 420 |
| Vehicle Speed (kmph) | 0-22 |
| Braking System | Hydraulic Power Brakes |
| Engine | KOEL BS-V Diesel Engine, 49 HP |
| Gradeability | 20 deg / 36.4% |
| Weighing Technology | Pressure Transducer |
| Tyre & Rim | 12.5/80x18, 16 PR |
| Tech Specifications | Details |
|---|---|
| Fuel Tank (Ltr) | 100 |
| Hydraulic Tank (Ltr) | 112 |
| Water Tank (Ltr) | 500 |
| Water Pump Capacity (L/min) | 230 |
| Chassis | Box Type |
| Unladen Weight (kg approx.) | 6,500 |
| Drive Type | Full Time 4 Wheel Drive |
| AdBlue Tank Capacity (Ltr) | NA |
| High Discharge Drum (HD) / Standard Drum | High Discharge Drum - |
| Dimension Code | Dimension in mm |
|---|---|
| A | 5665 |
| B | 2150 |
| C | 2420 |
| D | 3670 |
| E | 1305 |
| F | 320 |
Features
Steering System
Four-wheel steering with three selectable modes (4WS, 2WS, Crab) lets the operator manoeuvre confidently in tight or confined site spaces.
Short Turning Radius
A tight turning radius allows the mixer to navigate narrow site access roads and congested urban plots with ease.
i-CON
Conmat's i-CON platform tracks the machine in real time, giving fleet managers live location, usage, and performance data remotely.
Electronic Batch Controller
Weighs and records each batch electronically, ensuring accurate, consistent, and verifiable concrete mixing every time.
Special Design Blades for Fast Discharge
Purpose-engineered blades mix concrete faster and discharge it more completely, reducing residue left in the drum.
Rear View Camera Gives Better Visibility for Operations
An integrated rear camera improves visibility behind the machine, supporting safer reversing and site maneuvering.
Swivel Drum Gives An Extra Edge To The Operator for Concrete Placement
The swivel-capable drum lets the operator position concrete discharge more precisely, even in tight or awkward placement spots.
Applications
Urban Infrastructure
Compact design and tight turning radius make the CSLM 4800 well suited to space-constrained city sites.
Roads & Highways
Self-loading capability keeps road projects moving without waiting on a fixed batching plant.
Canals & Irrigation
Mobility and self-sufficiency suit remote canal and irrigation project sites.
Rural / Remote Sites
No external plant required - ideal for scattered or hard-to-access project locations.
