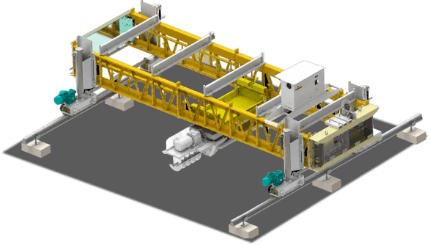

Concrete Paving Machine
CE 200F HD
CE 200F HD
The Conmat CE 200F HD is built to handle intensive road paving operations with dependable output and precise concrete placement. Its robust configuration supports smooth, uniform paving across large highway projects, helping maintain consistent quality throughout the construction process.
Paving Width - 3ft
Paving Thickness - Upto 450 mm
| Tech Specifications | Details |
|---|---|
| Prime Mover | |
| Driver End Panel | 5 HP Geared Motor |
| Vibratory Cylinder | 5 HP Geared Motor |
| Bogie RH & LH | 1 HP + 1 HP Geared Motor |
| Vibratory Cylinder | 1 HP Electric Motor |
| Traction System | |
| Traction Drive | Two Electrically Driven Double Flanged Bogie Wheels |
| Traction Speed | 0 - 5 mpm |
| Vibratory Cylinder Under Carriage | |
| Finished Cylinder | 270 mm dia., 1.2 mtr. long precisely balanced |
| Extra Long Screw Auger (RH & LH) | With hardened flights |
| Finishing Tolerance | +- 3 mm in 12 ft. |
| Machine Controls | |
| Adjustable Carriage Movement With Variable Speed Drive | |
| Shock Protection | |
| Overload Protection | |
| Construction | |
| Frame | All welded, pin connected main frame. Available in length of 2.40 mtr., 1.2 mtr., 0.6 mtr., which are infinitely adjustable up to 62 ft. (CE 200) and 110 ft. (CE 200 HD / CE 400) |
| Finishing Width | Finishing width normally 3ft. (0.9 mtr.) less than frame width and adjustable from 1 mtr. to 32 mtr. |
| Large Depth Slab | Also available for large depth upto 450 mm thick slab, span upto 62 ft. long adjustable (CE200F) with optional needle/pan vibrator |
| Optional | |
| Longitudinal & Transverse Groove Maker | |
| Longitudinal & Transverse PVC Water Stop Inserter Attachment | |
| Trimmer Attachment | |
| Transport Assembly | |
| Slope Wedges | |
Features

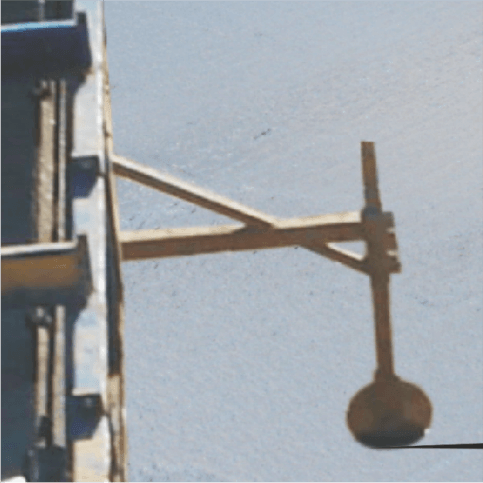

Groove Cutter (Optional)
Cuts expansion and contraction joints into freshly laid concrete, helping control cracking as the slab cures.

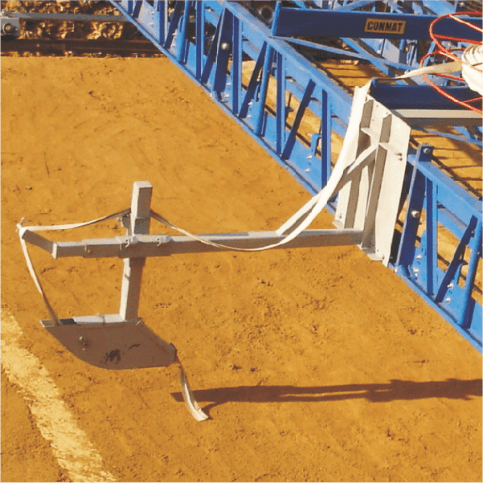

PVC Water Stop Attach (Optional)
Installs a PVC water stop strip during paving to seal joints against water seepage - particularly useful for canal and irrigation lining work.

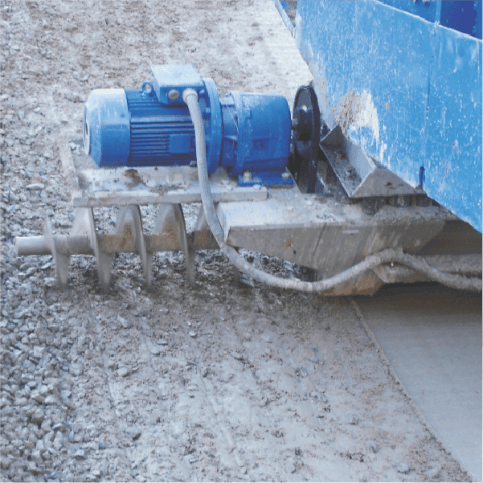

Extra Long Paving (Hardened Auger)
A hardened, extended auger enables longer, continuous paving runs before repositioning, improving productivity on long stretches.

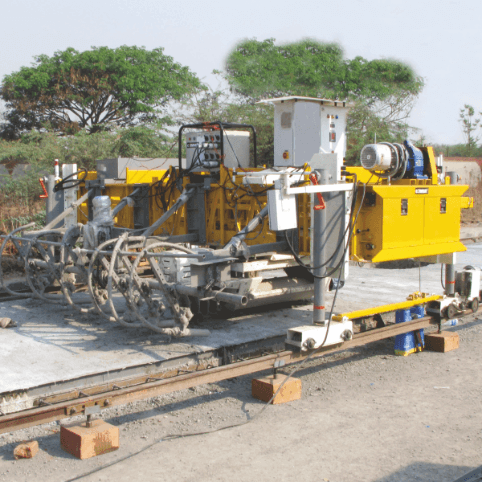

Gang Vibrator (Optional)
A bank of vibrators spread across the full paving width ensures uniform compaction and a consistent, void-free finish.

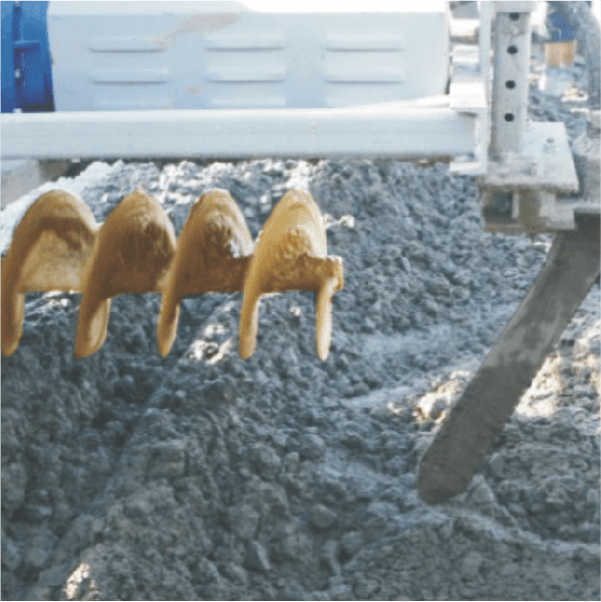

Needle Vibrator (Optional)
A targeted vibrator for compacting concrete in tight spots or edges the main vibration system cannot fully reach.

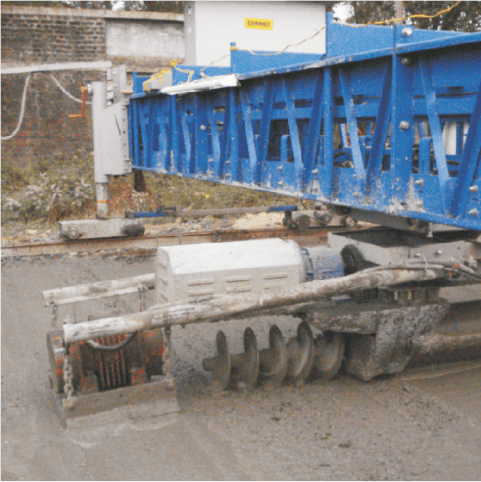

PAN Vibrator (Optional)
A surface-mounted pan vibrator smooths and finishes the top layer of laid concrete for a clean, uniform surface.
Applications
Roads
Designed for efficient and consistent concrete paving across roads, highways and transportation infrastructure, delivering uniform paving quality over long stretches.
Canals
Suitable for concrete canal lining and irrigation projects, supporting consistent placement and improved surface quality for durable water-management infrastructure.
