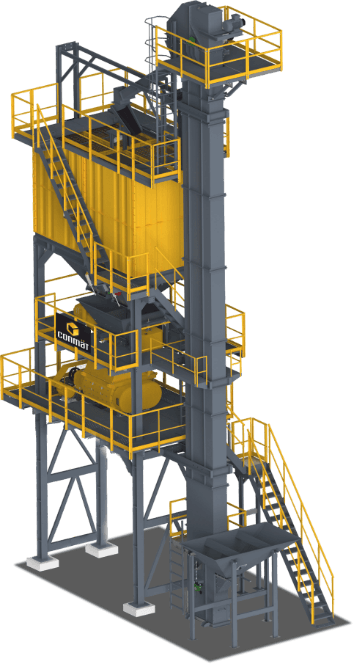

Concrete Batching Plant
TOWER 450
TOWER 450
The Conmat TOWER 450 is built for high-performance concrete batching across large commercial and infrastructure projects. Its vertical layout supports smooth material handling, continuous production and dependable batching accuracy for demanding construction operations.
Concrete Output - 45 m3/hr
Advanced Twin Shaft Mixing Technology
| Tech Specifications | Details |
|---|---|
| Output Theoretical (m3/hr) | 45 |
| Cross Bin | 4 |
| Bucket Elevator | 60 |
| Cement / Filler Weighing System | Yes |
| Water Weighing System | Yes |
| Admixture Weighing System | Yes |
| Mixer | Twin Shaft |
| Tech Specifications | Details |
|---|---|
| Maximum Size of Aggregate (mm) | 40 mm |
| Water Sprinkling & Gravity Discharge System | Yes |
| Air Compressor | Yes |
| Screw Conveyor for Cement | Yes |
| Cladding | Optional |
| Control System | Automatic |
| Discharge Height (mtr) | 4.1 |
| Connected Load (kW) | 64.5 |
Video Coming Soon
Features
Advanced Twin Shaft Technology
Better Mixing Quality
Counter-rotating twin shafts with specially designed paddles ensure 360° movement for uniform and homogeneous mixing.
Fast Mixing
85% of the maximum mix quality i.e. high compressive strength, constant slump etc. is achieved in initial 15 sec. itself and after another 15 sec. 95% homogeneity is achieved.
Long Wear Life
High wear-resistant materials and optimized mixing action minimize wear and tear, ensuring extended equipment life.
Intelligent Controls
Advanced Control System
Advanced Control System, powered by advanced SCADA Technology, delivers high-precision automated batching with real-time monitoring, intuitive operation, and robust safety features.
Control Panel
Compact, Dust & Water Protected Control Panels
I-Cloud Asset Management Module (Optional)
It enables remote access to batching plant from any device anywhere. Provides real-time batch and production reports. Centralized system for mix design and order management. Allows monitoring of multiple plants from a single dashboard. Supports inventory tracking with stock alerts (min/max levels). Tracks material inward & outward with detailed reports. Enables financial year-wise material and vendor management. Offers online recipe generator with integrated dashboards.
Low Maintenance Plant
Engineered to perfection, Conmat Batching Plant requires minimum maintenance, thus assuring continuous performance. We have invested heavily in state-of-the-art designing & manufacturing techniques to make the equipment of high productivity, which is not only efficient, but also performs in tough conditions.
Compact Overall Size
Sleek designed Conmat Batching Plant requires very less installation area & Minimum civil work and hence good saving for customers.
Applications
Urban Infrastructure
Well suited for urban construction projects where available installation space is limited and reliable concrete supply is required.
Roads & Highways
Supports road and highway projects with consistent concrete production for paving and structural applications.
Residential & Commercial Construction
Ideal for building projects requiring a compact batching solution with dependable concrete output at the construction site.
EPC Projects
Provides a practical batching solution for EPC contractors working across diverse construction and infrastructure applications.
Infrastructure Projects
Suitable for infrastructure development requiring efficient aggregate handling and continuous concrete production within a compact footprint.
