Concrete Batching Plant
CRP 450 IL
CRP 450 IL

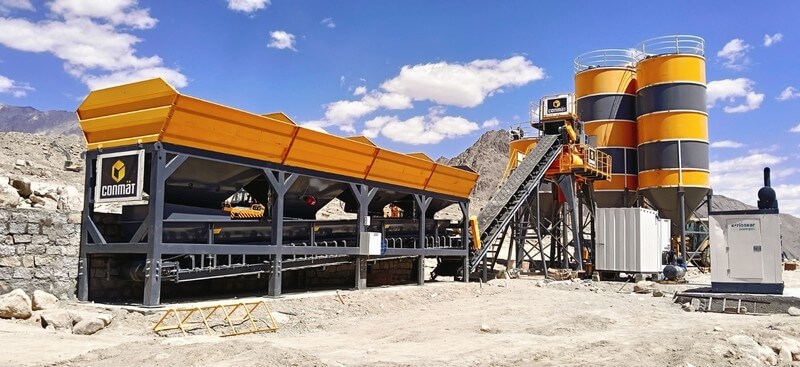

The Conmat RMC Series Stationary Batching Plant is engineered for high-performance concrete production. Designed for precision, reliability, and efficiency, it delivers consistent concrete quality with fast installation, low maintenance, and energy-efficient operation-making it the ideal solution for modern ready-mix concrete and infrastructure projects.
Concrete Output - 45 m3/hr
Advanced Twin Shaft Mixing Technology
| Tech Specifications | Details |
|---|---|
| Output Theoretical (m3/hr) | 45 |
| No. of Inline Bins | 4 or 5 |
| Charging Conveyor | Chevron Belt Conveyor |
| Cement / Filler Weighing System | Yes |
| Water Weighing System | Yes |
| Admixture Weighing System | Yes |
| Mixer | Twin Shaft |
| Tech Specifications | Details |
|---|---|
| Maximum Size of Aggregate (mm) | 60 |
| Water Sprinkling & Gravity Discharge System | Yes |
| Air Compressor | Yes |
| Screw Conveyor for Cement | Yes |
| Cement Feeding Hopper | Yes |
| Control System | PLC Based Automatic Control with SCADA |
| Discharge Height | 4.1 |
| Connected Load (kW) | 63 |
Features
Advanced Twin Shaft Technology
Better Mixing Quality
Counter-rotating twin shafts with specially designed paddles ensure 360° movement for uniform and homogeneous mixing.
Fast Mixing
85% of the maximum mix quality i.e. high compressive strength, constant slump etc. is achieved in initial 15 sec. itself and after another 15 sec. 95% homogeneity is achieved.
Long Wear Life
High wear-resistant materials and optimized mixing action minimize wear and tear, ensuring extended equipment life.
Intelligent Controls
Advanced Control System
Advanced Control System, powered by advanced SCADA Technology, delivers high-precision automated batching with real-time monitoring, intuitive operation, and robust safety features.
Control Panel
Compact, Dust & Water Protected Control Panels
Chevron Belt Conveyor
Belt Conveyor offers Long Life, Better Safety & Compactness to the plant
I-Cloud Asset Management Module (Optional)
It enables remote access to batching plant from any device anywhere. Provides real-time batch and production reports. Centralized system for mix design and order management. Allows monitoring of multiple plants from a single dashboard. Supports inventory tracking with stock alerts (min/max levels). Tracks material inward & outward with detailed reports. Enables financial year-wise material and vendor management. Offers online recipe generator with integrated dashboards.
Low Maintenance Plant
Engineered to perfection, Conmat Batching Plant requires minimum maintenance, thus assuring continuous performance. We have invested heavily in state-of-the-art designing & manufacturing techniques to make the equipment of high productivity, which is not only efficient, but also performs in tough conditions.
Compact Overall Size
Sleek designed Conmat Batching Plant requires very less installation area & Minimum civil work and hence good saving for customers.
Applications
RMC & Ready-Mix Concrete
Purpose-built for dedicated RMC plant operations needing consistent batch accuracy.
Urban Infrastructure
Suited to fixed-site urban and real estate construction projects with steady concrete demand.
Roads & Highways
Serves nearby road and highway construction projects with a dependable, fixed-site concrete supply.
EPC Contractors
Fits into a single-vendor equipment fleet for EPC contractors managing multiple concurrent sites.
Government & Public Infrastructure
Backed by Conmat's ISO 9001/27001/45001 certifications, suited to compliance-driven government and PSU projects.
