Concrete Batching Plant

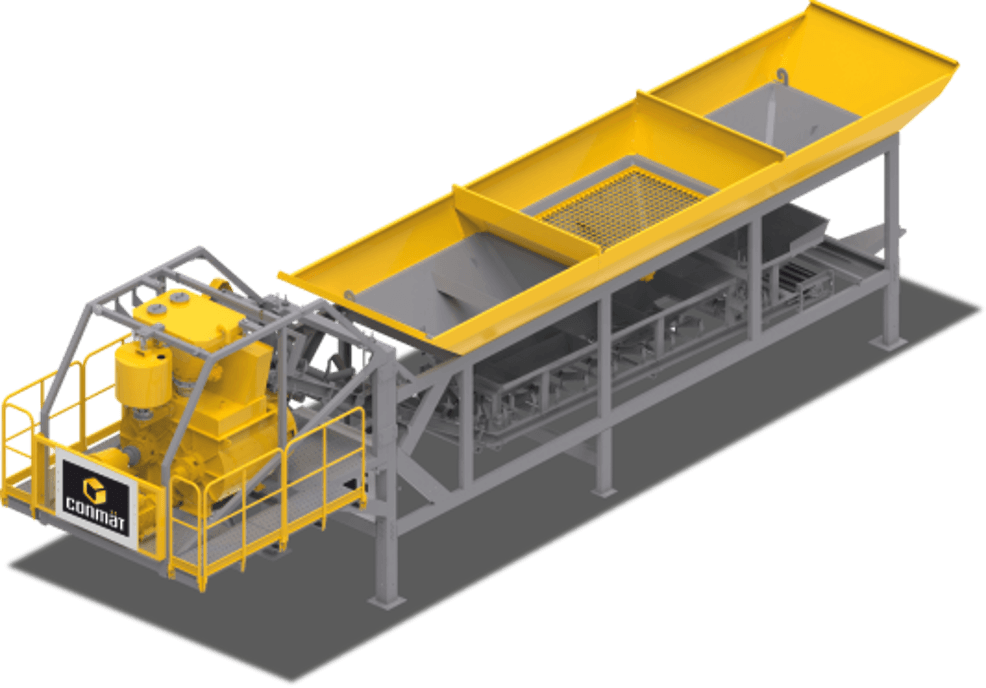

CBP 250M
CBP 250M
The Conmat CBP 250M offers a practical solution for mobile concrete production across diverse project environments. Designed for efficient operation and easy movement, it delivers dependable batching performance wherever concrete is required.
Concrete Output - 25 m3/hr
Advanced Twin Shaft Mixing Technology
| Tech Specifications | Details |
|---|---|
| Output Capacity (m3/hr) | 25 |
| No. of Inline Bins | 3 or 4 |
| Aggregate Charging Conveyor | Yes |
| Storage Capacity (m3/hr) | 13 |
| Cement / Filler Weighing System | Yes |
| Water Weighing System | Yes |
| Admixture Weighing System | Optional |
| Mixer | Twin Shaft |
| Maximum Size of Aggregate (mm) | 40 mm |
| Tech Specifications | Details |
|---|---|
| Air Compressor | Yes |
| Screw Conveyor for Cement | Yes |
| Screw Conveyor for Fly Ash | Optional |
| Cement Feeding Hopper | Yes |
| Control System | Automatic |
| Mobility | Rear Axle X 2 nos. Tyres (Optional) |
| Connected Load (kW) | 32 |
| Weight Approx (Kg) | 7,500 |
Video Coming Soon
Features
Advanced Twin Shaft Technology
Better Mixing Quality
Counter-rotating twin shafts with specially designed paddles ensure 360° movement for uniform and homogeneous mixing.
Fast Mixing
85% of the maximum mix quality i.e. high compressive strength, constant slump etc. is achieved in initial 15 sec. itself and after another 15 sec. 95% homogeneity is achieved.
Long Wear Life
High wear-resistant materials and optimized mixing action minimize wear and tear, ensuring extended equipment life.
Intelligent Controls
Advanced Control System
Advanced Control System, powered by advanced SCADA Technology, delivers high-precision automated batching with real-time monitoring, intuitive operation, and robust safety features.
Control Panel
Compact, Dust & Water Protected Control Panels
No Ramp Required
Loading can be done directly by a backhoe loader - no ramp needed, simplifying site setup.
I-Cloud Asset Management Module (Optional)
It enables remote access to batching plant from any device anywhere. Provides real-time batch and production reports. Centralized system for mix design and order management. Allows monitoring of multiple plants from a single dashboard. Supports inventory tracking with stock alerts (min/max levels). Tracks material inward & outward with detailed reports. Enables financial year-wise material and vendor management. Offers online recipe generator with integrated dashboards.
Tractor Towing
Optional tractor-towing capability for easy relocation between sites.
Pump / TM Loading
Flexible material handling - the plant can be fed directly via a concrete pump or transit mixer, adapting to different site logistics without extra equipment.
In-Line Storage Bins
3-4 in-line aggregate storage bins (13 m³ total capacity) allow multiple aggregate types to be stored and dispensed accurately in sequence during batching.
Compact Overall Size
Sleek designed Conmat Batching Plant requires very less installation area & Minimum civil work and hence good saving for customers.
Applications
Roads & Highways
Ideal for road and highway projects requiring a dependable concrete supply that can be relocated as construction progresses.
Large Infrastructure
Supports infrastructure projects spread across multiple locations, offering flexible batching close to the point of use.
Bridges & Flyovers
Suitable for bridge and flyover construction where concrete production needs to be positioned close to different work zones.
Canals & Irrigation
Provides convenient on-site concrete production for extended canal, irrigation and water infrastructure projects.
EPC Contractors
Well-suited for EPC contractors handling multiple projects that require a flexible and relocatable concrete batching solution.
Remote & Temporary Projects
Ideal for projects in remote locations or temporary construction sites where establishing a permanent batching facility is impractical.
