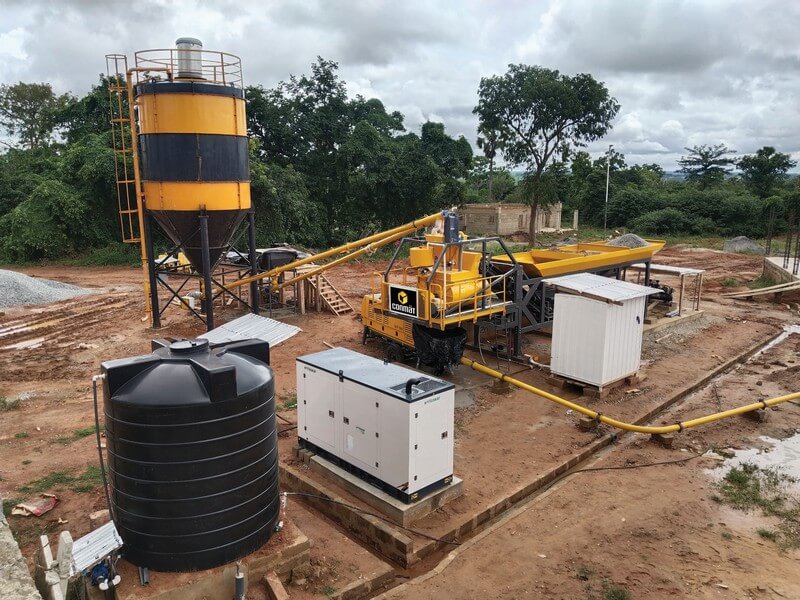

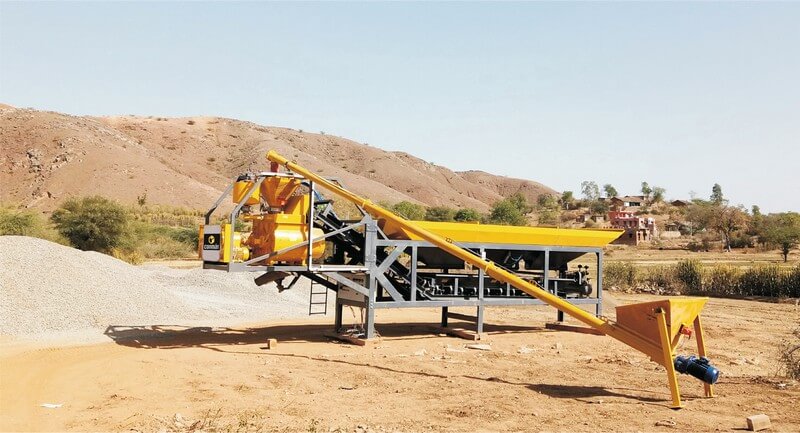

Concrete Batching Plant
CBP 200M
CBP 200M

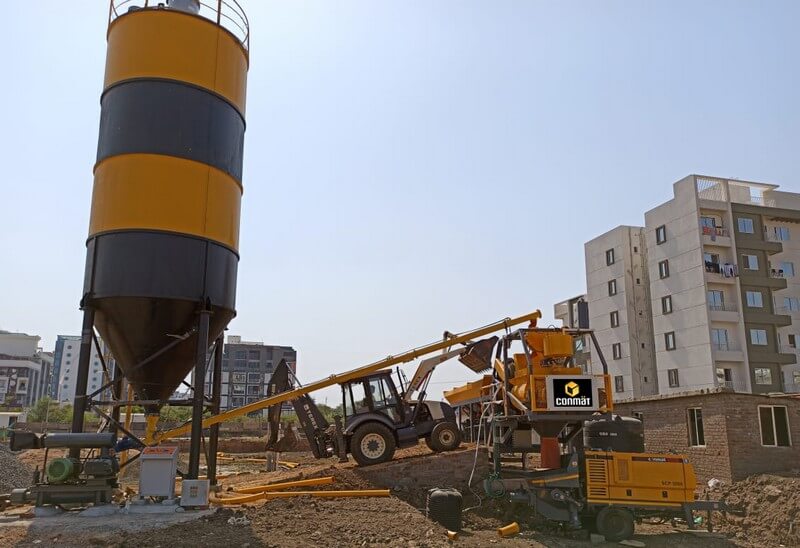

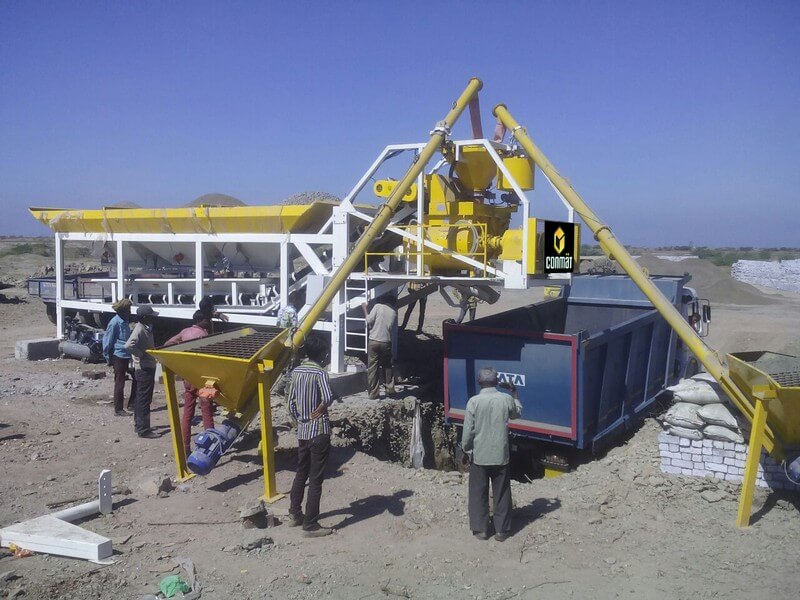

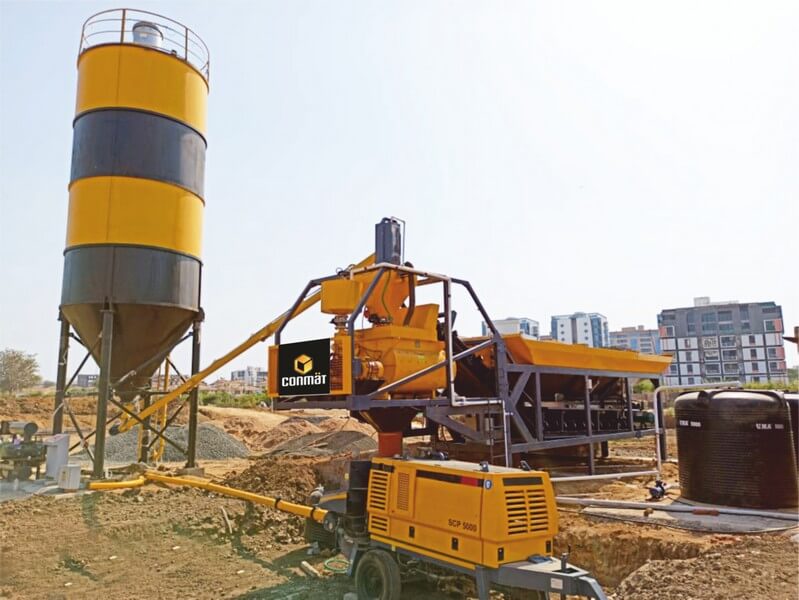

The Conmat CBP 200M is designed for flexible concrete production at projects where mobility and quick deployment are essential. Its compact configuration enables efficient batching and easy relocation between demanding construction sites.
Concrete Output - 20 m3/hr
Advanced Twin Shaft Mixing Technology
| Tech Specifications | Details |
|---|---|
| Output Capacity (m3/hr) | 20 |
| No. of Inline Bins | 3 or 4 |
| Aggregate Charging Conveyor | Yes |
| Storage Capacity (m3/hr) | 13 |
| Cement / Filler Weighing System | Yes |
| Water Weighing System | Yes |
| Admixture Weighing System | Optional |
| Mixer | Twin Shaft |
| Maximum Size of Aggregate (mm) | 25 mm |
| Tech Specifications | Details |
|---|---|
| Air Compressor | Yes |
| Screw Conveyor for Cement | Yes |
| Screw Conveyor for Fly Ash | Optional |
| Cement Feeding Hopper | Yes |
| Control System | Automatic |
| Mobility | Rear Axle X 2 nos. Tyres (Optional) |
| Connected Load (kW) | 28 |
| Weight Approx (Kg) | 7,000 |
Video Coming Soon
Features
Advanced Twin Shaft Technology
Better Mixing Quality
Counter-rotating twin shafts with specially designed paddles ensure 360° movement for uniform and homogeneous mixing.
Fast Mixing
85% of the maximum mix quality i.e. high compressive strength, constant slump etc. is achieved in initial 15 sec. itself and after another 15 sec. 95% homogeneity is achieved.
Long Wear Life
High wear-resistant materials and optimized mixing action minimize wear and tear, ensuring extended equipment life.
Intelligent Controls
Advanced Control System
Advanced Control System, powered by advanced SCADA Technology, delivers high-precision automated batching with real-time monitoring, intuitive operation, and robust safety features.
Control Panel
Compact, Dust & Water Protected Control Panels

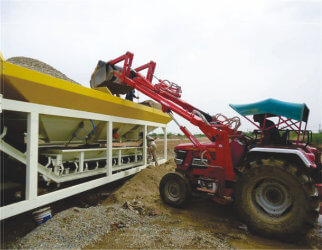

No Ramp Required
Loading can be done directly by a backhoe loader - no ramp needed, simplifying site setup.
I-Cloud Asset Management Module (Optional)
It enables remote access to batching plant from any device anywhere. Provides real-time batch and production reports. Centralized system for mix design and order management. Allows monitoring of multiple plants from a single dashboard. Supports inventory tracking with stock alerts (min/max levels). Tracks material inward & outward with detailed reports. Enables financial year-wise material and vendor management. Offers online recipe generator with integrated dashboards.

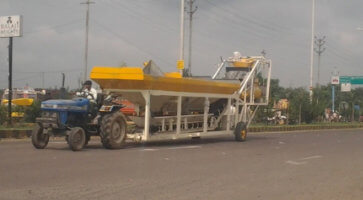

Tractor Towing
Optional tractor-towing capability for easy relocation between sites.
Pump / TM Loading
Flexible material handling - the plant can be fed directly via a concrete pump or transit mixer, adapting to different site logistics without extra equipment.

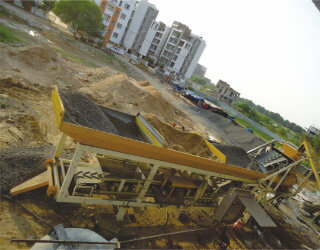

In-Line Storage Bins
3-4 in-line aggregate storage bins (13 m³ total capacity) allow multiple aggregate types to be stored and dispensed accurately in sequence during batching.
Compact Overall Size
Sleek designed Conmat Batching Plant requires very less installation area & Minimum civil work and hence good saving for customers.
Applications
Roads & Highways
Ideal for road and highway projects requiring a dependable concrete supply that can be relocated as construction progresses.
Large Infrastructure
Supports infrastructure projects spread across multiple locations, offering flexible batching close to the point of use.
Bridges & Flyovers
Suitable for bridge and flyover construction where concrete production needs to be positioned close to different work zones.
Canals & Irrigation
Provides convenient on-site concrete production for extended canal, irrigation and water infrastructure projects.
EPC Contractors
Well-suited for EPC contractors handling multiple projects that require a flexible and relocatable concrete batching solution.
Remote & Temporary Projects
Ideal for projects in remote locations or temporary construction sites where establishing a permanent batching facility is impractical.
