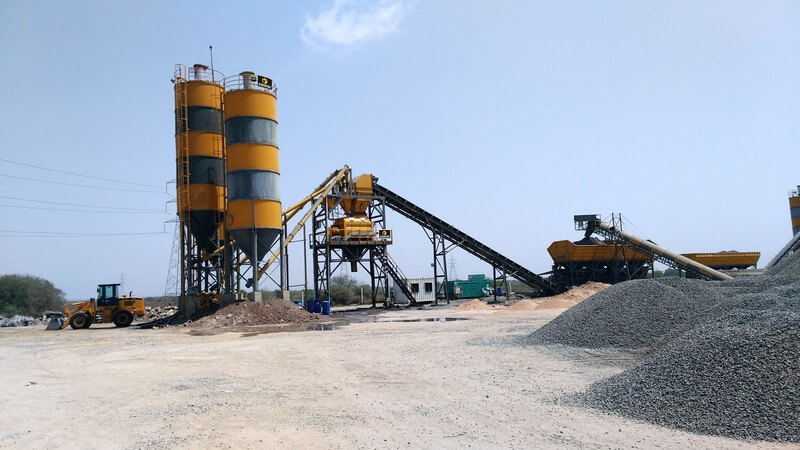

Concrete Batching Plant
CRP 900 IL
CRP 900 IL
The Conmat CRP 900 IL is designed for large-scale infrastructure projects requiring dependable concrete production and continuous plant operation. Its robust configuration supports efficient material handling, consistent batching and reliable output for demanding construction requirements.
Concrete Output - 90 m3/hr
Advanced Twin Shaft Mixing Technology
| Tech Specifications | Details |
|---|---|
| Output Theoretical (m3/hr) | 90 |
| No. of Inline Bins | 4 or 5 or 6 |
| Charging Conveyor | Chevron Belt Conveyor |
| Cement / Filler Weighing System | Yes |
| Water Weighing System | Yes |
| Admixture Weighing System | Yes |
| Mixer | Twin Shaft |
| Maximum Size of Aggregate (mm) | 80 mm |
| Tech Specifications | Details |
|---|---|
| Water Sprinkling & Gravity Discharge System | Yes |
| Air Compressor | Yes |
| Screw Conveyor for Cement | Yes |
| Cement Feeding Hopper | _ |
| Control System | PLC Based Automatic Control with SCADA |
| Discharge Height | 4.1 |
| Connected Load (kW) | 134 |
Features
Advanced Twin Shaft Technology
Better Mixing Quality
Counter-rotating twin shafts with specially designed paddles ensure 360° movement for uniform and homogeneous mixing.
Fast Mixing
85% of the maximum mix quality i.e. high compressive strength, constant slump etc. is achieved in initial 15 sec. itself and after another 15 sec. 95% homogeneity is achieved.
Long Wear Life
High wear-resistant materials and optimized mixing action minimize wear and tear, ensuring extended equipment life.
Intelligent Controls
Advanced Control System
Advanced Control System, powered by advanced SCADA Technology, delivers high-precision automated batching with real-time monitoring, intuitive operation, and robust safety features.
Control Panel
Compact, Dust & Water Protected Control Panels
Chevron Belt Conveyor
Belt Conveyor offers Long Life, Better Safety & Compactness to the plant
I-Cloud Asset Management Module (Optional)
It enables remote access to batching plant from any device anywhere. Provides real-time batch and production reports. Centralized system for mix design and order management. Allows monitoring of multiple plants from a single dashboard. Supports inventory tracking with stock alerts (min/max levels). Tracks material inward & outward with detailed reports. Enables financial year-wise material and vendor management. Offers online recipe generator with integrated dashboards.
Low Maintenance Plant
Engineered to perfection, Conmat Batching Plant requires minimum maintenance, thus assuring continuous performance. We have invested heavily in state-of-the-art designing & manufacturing techniques to make the equipment of high productivity, which is not only efficient, but also performs in tough conditions.
Applications
Large Infrastructure
Designed for major infrastructure developments requiring high-capacity, consistent and uninterrupted concrete supply.
Roads & Highways
Supports large road and highway projects with dependable concrete production for continuous paving and structural works.
Bridges & Flyovers
Suitable for bridge, flyover and elevated infrastructure projects requiring consistent concrete output across demanding construction phases.
Canals & Irrigation
Provides reliable concrete production for extensive canal, irrigation and water infrastructure projects.
Government & Public Infrastructure
Supports large government and public infrastructure projects where dependable production, consistency and operational reliability are essential.
EPC Contractors
Well-suited for EPC contractors handling large and multiple infrastructure projects with high-volume concrete requirements.

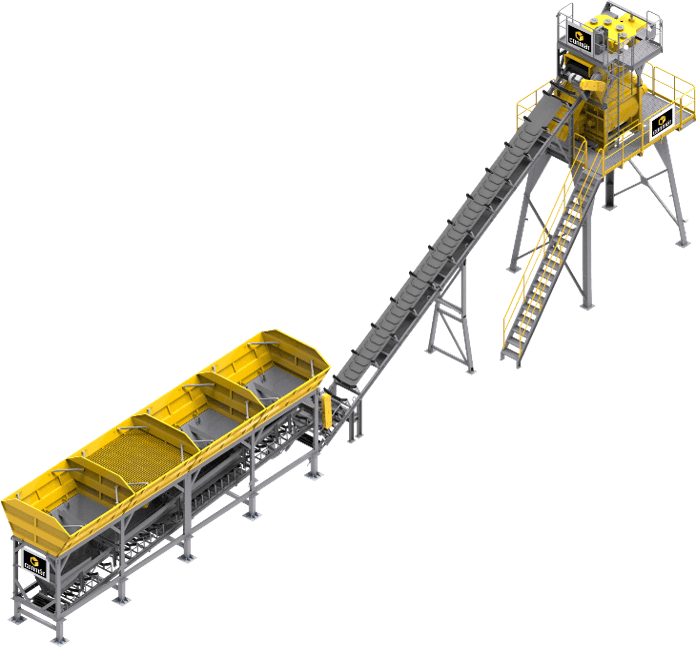

View Similar Products
